16.25x21x4 Air Filters: Actual Size vs Nominal Size Explained
TL;DR
A filter sold as 16.25x21x4 measures 16.25 x 21.00 x 3.63 inches. Two of those numbers are literal, and one is rounded: the face dimensions are exactly what the label says, while "4 inches" is a nominal name for a 3.63-inch build. Order by the nominal name, then check your slot against the actual numbers.
Key Takeaways
● Actual size is 16.25 x 21.00 x 3.63 inches. You order the nominal size, 16.25x21x4.
● Depth is the only rounded number: 3.63 inches is 3 5/8 as a decimal.
● Fractional sizes follow a different rule than whole-inch sizes: a 16x25x4 is cut half an inch under nominal; a 16.25x21x4 is not.
● A quarter-inch in the name means a custom slot. Round it either way, and the seal is gone.
● Actual sizes are not standardized between brands, so read the frame before switching.
What Does a 16.25x21x4 Air Filter Actually Measure?
A 16.25x21x4 air filter measures 16.25 x 21.00 x 3.63 inches. Every filter carries two sizes: a nominal size, the rounded name printed on the frame and used for ordering, and an actual size, what it measures under a tape. Here the two diverge only on depth.
Those figures come from the manufacturer. Filterbuy is a second-generation, family-owned American air filter manufacturer that builds pleated HVAC filters in 600-plus sizes plus custom cuts, and publishes each filter's actual dimensions alongside its nominal size.
If you measured the filter and got 3.63 inches, nothing went wrong. You got the right part.
Why Is Only the Depth Rounded?
Because face dimensions and depth follow different rules. On whole-inch sizes, manufacturers trim the face under the nominal number so the filter slides without binding. On fractional sizes, they cut to the number you asked for. Depth has its own convention: 4-inch filters are built at 3.63 inches industry-wide and named 4.
So Why 3.63, of All Numbers?
Because it is not really 3.63. It is 3 5/8 inches, rounded to two decimals for a spec sheet. Every actual dimension resolves the same way: 0.75 is 3/4, 1.75 is 1 3/4, 4.38 is 4 3/8, 16.25 is 16 1/4.
That matters beyond trivia: a tape measure reads eighths and sixteenths, not hundredths. Stop hunting for 3.63 and look for 3 5/8, which is marked.
Is Your Slot a 16.25x21x4 or a 16.25x21.25x4?
Check before you order, because both sizes exist and differ by a quarter of an inch. A 16.25x21.25x4 measures 16.25 x 21.25 x 3.63 inches: same width, same depth, one quarter-inch longer. Measure the long side of your opening; 21 flat means this size, 21 and a quarter means the neighbouring one.
Two sizes a quarter-inch apart in one catalogue is the clearest proof that fractions are literal. If they were decorative rounding, nobody would tool up for both.
How Do You Confirm Your Slot Takes a 16.25x21x4?
Measure the slot opening, not the old filter. A filter that has been in service is warped at the corners and will send you to the wrong size.
1. Shut the system off at the thermostat.
2. Slide the old filter out and set it aside. You are not measuring it.
3. Measure the opening: width, then length, then how deep the slot runs.
4. Do not round a fraction. If you get 16.25, that is 16.25.
5. Write it as width x length x depth and order that as your nominal size.
Here is the part most homeowners get backwards. Common sizes are forgiving: a 16x25x4 arrives half an inch under nominal, so a tape reading off by a sixteenth is absorbed by that clearance and the filter still seats. A fractional size hands the cushion back. Because 16.25 and 21.00 are cut to the number, your measurement is the tolerance, which makes an odd size the one that punishes approximation, not the one you can safely eyeball.
What a Bad Fit Does to Your Ducts
Air takes the easiest path, so a gap does not simply reduce filtration. The filter cleans a smaller share of the air and sends the rest around its edges unfiltered, into the return plenum and onto the evaporator coil. The system runs, the filter looks clean, and the dust arrives anyway.
A 16.25 x 21 filter presents about 341 square inches of face. A quarter-inch gap down both long sides opens 10.5 square inches, roughly 3% of that area, but it is not a 3% problem. Media is built to resist airflow, which is how it catches anything; an open slot resists almost nothing, so the share of air taking the gap far exceeds the share of area it occupies. The EPA puts the requirement in one line: a filter must fit snugly, without leaking air around it and without being bent to fit.

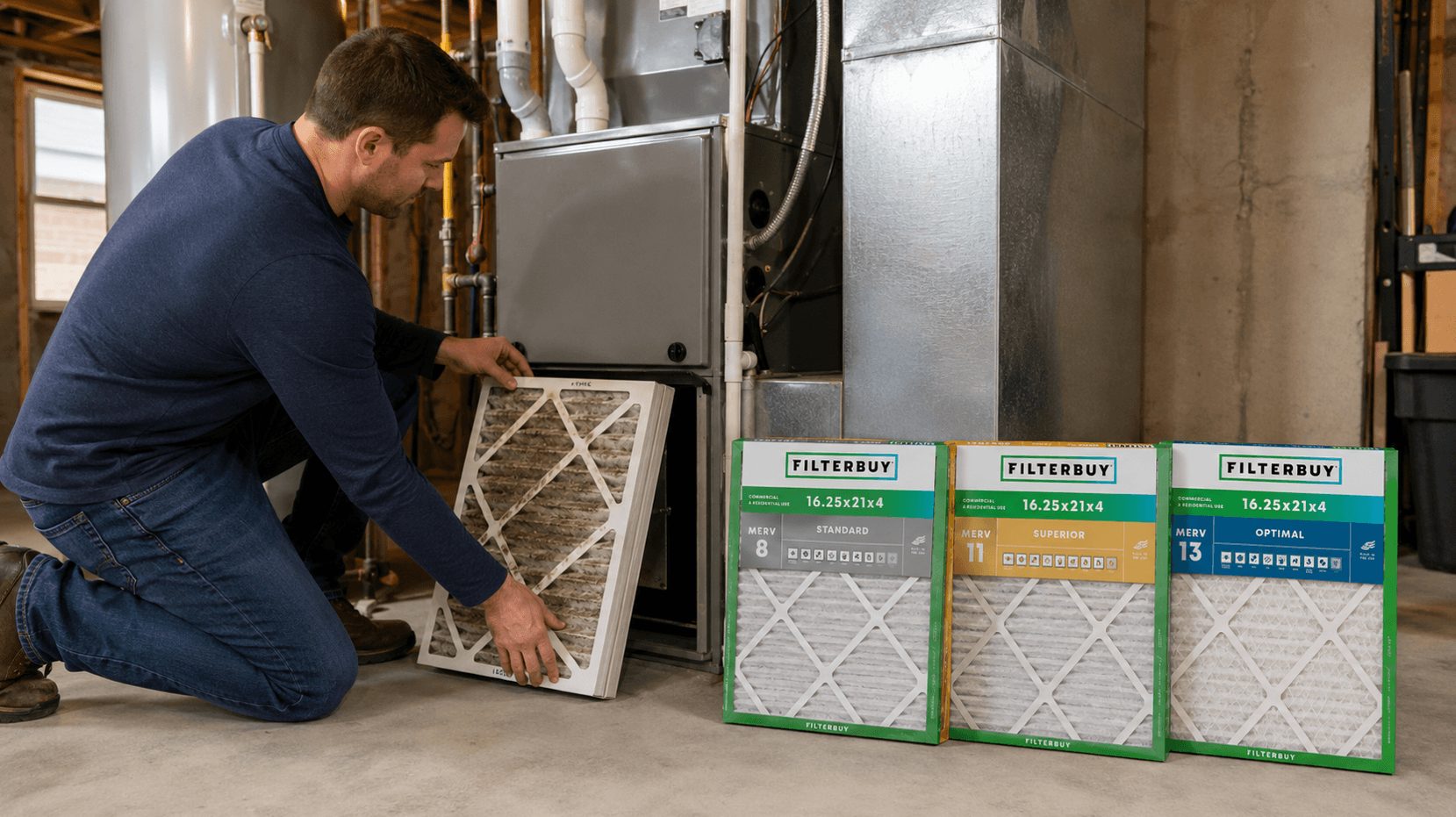

Which MERV Rating Should You Use?
Match the rating to what your blower can push. MERV, defined under ANSI/ASHRAE Standard 52.2, measures capture efficiency and says nothing about fit. Size and MERV are independent choices, and this size is stocked in all three tiers.
The EPA recommends MERV 13, or as high as your fan and slot will accommodate. Higher is not automatically better: too restrictive for your blower raises static pressure and starves the system, producing the same symptoms as a dirty duct.
How Often Should You Change It?
About every 90 days in a typical home. The 3.63-inch depth is why it reaches the longer end of that window, since deeper pleats hold more dust than a 1-inch filter before airflow drops off. Shorten it to six to eight weeks with pets, allergies, or a system that runs most of the day.
"On a whole-inch size, we cut half an inch under so the filter slides without binding, and that clearance quietly absorbs a sloppy measurement. On a fractional size like 16.25 x 21 we cut to the number, so the cushion is gone. An odd size demands a more careful tape reading than a common one, not a less careful one."
-The Filterbuy Team
Essential Resources on 16.25x21x4 Air Filters
1. Lists actual dimensions next to the nominal name, so you can check your slot and the available MERV ratings before ordering.
Source: Filterbuy 16.25x21x4 Air Filters (Actual Size 16.25 x 21.00 x 3.63 in)
2. The federal consumer guide to how HVAC filters reduce indoor particles, including the rule that an air filter must fit snugly without leaking air.
Source: U.S. EPA, Guide to Air Cleaners in the Home
3. The primary test method behind every MERV number, including the particle-size ranges each rating is measured against.
Source: ANSI/ASHRAE Standard 52.2-2017
4. Why restricted airflow raises your bill, with guidance to check monthly and change at least every three months.
Source: ENERGY STAR, Heat and Cool Efficiently
Supporting Statistics
MERV 13 is a measured threshold, not a marketing tier.
MERV 13 is at least 50% efficient on particles from 0.3 to 1.0 microns and 85% from 1 to 3 microns. Those figures are measured on air passing through the media, so air slipping around a poor frame is filtered at zero percent.
Source: CDC / NIOSH, Ventilation Frequently Asked Questions
Two out of three U.S. homes have a central filter slot where fit matters.
Air conditioning is used in 88% of U.S. households, two-thirds on central AC or a heat pump. That is roughly 80 million filter slots somebody has to size correctly.
Source: U.S. Energy Information Administration, 2020 Residential Energy Consumption Survey
About 28 million people in the U.S. have asthma, including 1 in 15 children.
These households notice a bypass gap first, usually as dust returning days after a fresh filter. That symptom points to the seal, not the rating.
Source: Asthma and Allergy Foundation of America, Asthma Facts
Final Thoughts
Dust that returns within days of a filter change is rarely a filter that failed. It is usually one that never sealed, sitting in a slot somebody rounded because the fraction looked like a typo, and the failure is invisible from the outside.
Three things worth carrying away: the fraction is the most trustworthy number in the name, depth is the confusing one and also the harmless one, and fit beats MERV every time. A MERV 8 that seals outperforms a MERV 13 with a quarter-inch channel.
One criticism for the whole category, Filterbuy included. Printing "4 inch" on a part measuring 3.63 is an inherited convention nobody will break, and it produces a steady stream of customers convinced they were shipped the wrong item.
Next Steps
Shut the system off and pull the old filter, noting which way its airflow arrow faced.
Measure the slot opening, not the old filter, and never round a fraction.
Order by nominal size, and verify the listing publishes actual dimensions.
Pick the highest MERV your blower carries without straining: 8 for dust, 11 for allergens and pets, 13 if the system supports it.
Install with the arrow pointing toward the blower. A backwards filter still fits, but its pleats are braced wrong and can collapse as they load.
Set a reminder for 90 days, and check it at 30.
Write the size inside the access panel so nobody measures it again.
Frequently Asked Questions
Q: Is 16.25x21x4 a standard air filter size?
A: No. The quarter-inch marks it as a custom-slot size. It is manufactured and stocked, but big-box shelf stock is unreliable, so plan to order it rather than drive store to store.
Q: Why does my brand-new filter measure 3.63 inches instead of 4?
A: Because a 4-inch filter is built at 3.63 inches, which is 3 5/8 in decimal form. The name is nominal; the measurement is actual, and nothing is wrong with your filter.
Q: Can I use a 16x21x4 instead?
A: No. That leaves a quarter-inch gap along one dimension, and air will take it. Order the size your slot actually measures.
Q: Do all 16.25x21x4 filters from different brands measure the same?
A: Not necessarily. Nominal sizes are shared across the industry, but actual sizes are each manufacturer's own decision. Read the actual dimensions on the frame whenever you switch brands.
Q: I already ordered the wrong size. Can I make it work?
A: No. Too small slides in and looks fine, which is the dangerous one; do not run it and do not tape the edges, since tape sheds adhesive into the return as it loads. Too large will not seat, and trimming or bending the frame destroys the seal it exists to make.
Get the Right Three Numbers, Then Order Once
A 16.25x21x4 measures 16.25 x 21.00 x 3.63 inches, or 16 1/4 by 21 by 3 5/8 on a tape. Put a tape on your slot today, order against a listing that publishes both numbers, and stop paying a technician to clean up dust that never should have gotten past the frame.
